EE 4702-1 - Code Examples

Code used in class. The links below may point to out-of-date copies, use anonymous svn to retrieve the latest copies. Code is also available via anonymous svn from Those not familiar with SVN should read these SVN instructions.

Dynamic Simulation Examples

These programs perform simple dynamic simulations of bouncing balls. They are intended to show how dynamic simulation is done, students are not expected to understand the gaphical code at this point in the semester. Code Repository

Bouncing Ball (2011)

Shows a ball boncing on a plane. Dynamic state is just the ball position and velocity.


Springs (2011)

Shows multiple balls connected by ideal springs.


Balls (2011)

Shows management of multiple balls.


These programs show use of OpenGL for graphics. Code Repository

Single Triangle (2011)

A very simple OpenGL program. Just shows a purple traingle.


Sphere (2011)

Code shows tesselation of a sphere.


Lighting (2011)

Demonstrate different material properties (emissive, ambient, diffuse, specular) and lighting options.


Vertex Specification (2011)

Demonstrate use of vertex arrays and buffer objects, which are much faster ways of sending vertex data to OpenGL than using glVertex to send the data one vertex at a time. Also shows benefit of pre-computing coordinates.


Textures (2009)

Demonstration of texture application techniques and texture filtering techniques.


Vertex and Fragment Shaders (2012)

Demonstration of vertex and fragment shader for per-fragment lighting calculations. Also look at and the shader code.

Project Base

Code used as baseline for course projects. Code Repository

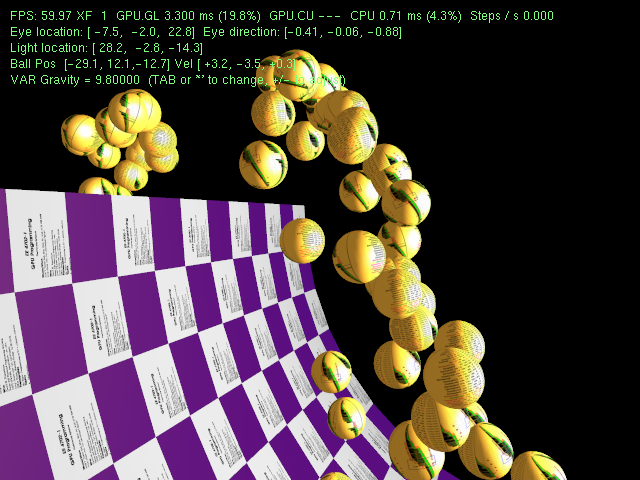

Bouncing Ball Simulation (Updated Spring 2010)

This code, for use as a project base and in-class demo, shows multiple techniques. These include: ball physics performed by GPU via CUDA, use of shadow volumes to stencil shadow locations, use of vertex and geometry shader to compute ball reflection locations, use of occlusion queries to limit the number of balls rendered. See also CUDA code, and Shader code.
