## LSU EE 3755 -- -- Computer Organization

#

## Control Logic for MIPS -- fall 2003

## Dec.  1.  2003



## Contents

#

# Single Cycle control logic for the Datapath (page 85)

# Hard wired and Micro Programmed Controller

# Multi Cycle control logic

# Finite State Diagram and Finite State Machine

# Programmable Logic Array







# Single Cycle control logic for the Datapath (page 85)

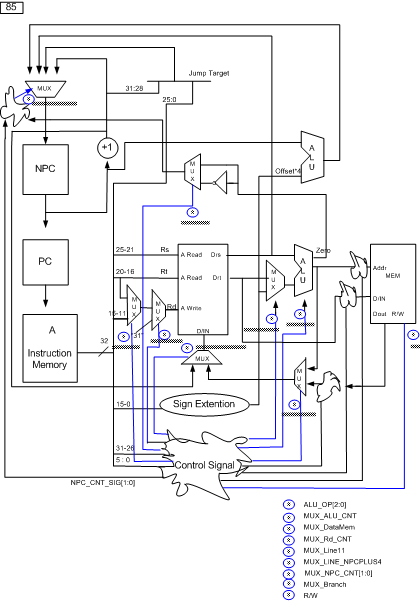

Control logic for Page 85 of Datapath..



We simply have to give a control signal for each Multiplexor , the ALU

and design logic for control circuit near  the PC.



1) the ALU

2) Mux at ALU

3)Mux at  data Memory and ALU.

4)Mux at Rd for  Register file

5)Mux at line 15-11 for Register file

6)Mux at D/IN for Register file

7) Mux and control for NPC

8)Mux for the control after the ALU



1) the ALU

      ALU can perform

                      AND,

                      OR,

                      SLT,

                      ADD,

                      SUB

                      operations.

      We will generate those control signals from

      OP code field[31:26] and func field[5:0]

        We have control inputs for ALU.





          ALU_OP[2:0]            Operation

             000                            AND

             001                            OR

             010                            SLT

             011                           ADD

             100                           SUB



                    OP       FUN     ALUoperation  :      OP              FUN         ALU_OP

    AND          0         0X 24            AND               000000   100100                000

    ANDI         6           X                  AND              000110   XXXXXX             000

    OR            0          0x25              OR                000000   100101                001

    ORI           d            X                 OR                 001101   XXXXXX             001

    SLT           0          0x2a             SLT               000000   101010                 010

    SLTI           a          X                   SLT               001010   XXXXXX              010

    ADD           0          0X20              ADD             000000   100000                 011

    ADDI          8            X                ADD              001000   XXXXXX              011

    SUB           0          0X22              SUB              000000    100010                100

    LW             23           X                  ADD              100011   XXXXXX              011

    LB              20           X                  ADD              100000   XXXXXX              011

   SW             2b          X                  ADD               100000   XXXXXX              011

   SB              28          X                  ADD               101000   XXXXXX              011

   BEQ            4           X                  SUB                000100  XXXXXX              100

   BNE            5           X                  SUB                000101  XXXXXX              100



             By using  AND and OR gates, We could easily generate ALU_OP.

             After logic minimization, the output will be simpler.

  ##############################################################

             There are many other ways to do this.

             One simple way is using decoders to decode OP code and function

             field.



               6 inputs and 64 outputs for each decoder.

             000                            AND

             001                            OR

             010                            SLT

             011                           ADD

             100                           SUB

          ALU_OP[2]  =   x0 y34  +  x4 + x5

          ALU_OP[1]  =  slt  add   (0 2a)  + a + (0 20) + 8 + 23 + 20 +2b + 28

                                 =  x0y42+x10+x0y32+x8+x35+x32+x43+x40

          ALU_OP[0]  =  or add   (0 25) + d+  (0 20) + 8 + 23 + 20 +2b + 28

                                 =   x0y37+x13+   x0y32+x8+x35+x32+x43+x40

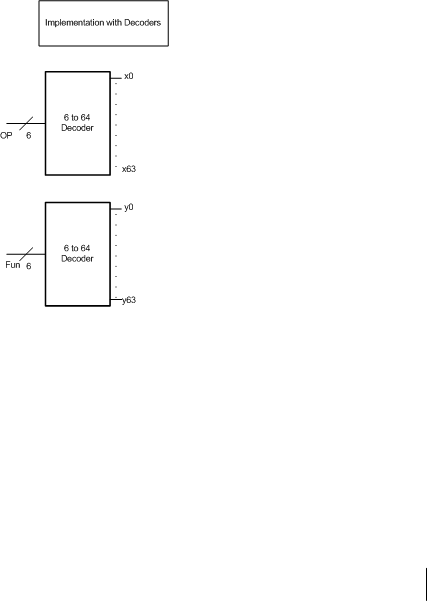

  ##              Fig. for Decoders



 ###################################################################

              second simple way is using a ROM.

                the address for the ROM is OP code and funcion field and the ouput is ALU_OP.

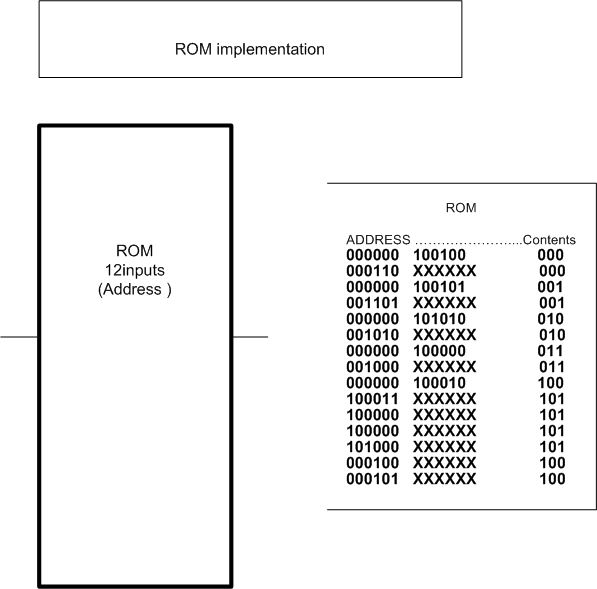

##               Fig. for ROM



####################################################################

2) Mux at ALU

         the Mux will select D/rt or sign extended immed.

         if select for the Mux is 0, it will select D/rt otherwise select sign extended immed.

         We call the select signal Mux_ALU_CNT.

         ANDI,ORI,SLTI,ADDI,LW,LB,SW,SB use

                 immediate values.











            OP   FUN     ALUoperation  :      OP       FUN         Mux_ALU_CNT



ANDI     6       X          AND                    000110   XXXXXX           1

 ORI      d       X           OR                     001101   XXXXXX           1

 SLTI    a        X           SLT                   001010   XXXXXX            1

 ADDI   8        X          ADD                   001000   XXXXXX            1

 LW     23       X         ADD                    100011   XXXXXX            1

 LB      20       X         ADD                   100000   XXXXXX            1

 SW     2b       X        ADD                    100000   XXXXXX            1

 SB     28        X        ADD                    101000   XXXXXX            1



## We could implement the logic with AND and OR gates.

## We could use a decoder with OR gate to implement this.

## We could use a ROM with 6bit address field.



3)Mux at  data Memory and ALU.

         the Mux will select ALU_output or Dout.

         if select for the Mux is 0, it will select ALU_output ,

         otherwise select Dout.

         We call the select signal Mux_DataMem.

         Only LW and LB will set Mux_DataMem.



         OP     FUN     ALUoperation  :      OP      FUN         Mux_DataMem

 LW   23           X           ADD              100011   XXXXXX            1

 LB    20           X           ADD              100000   XXXXXX            1



## We could implement the logic with AND and OR gates.

## We could use a decoder with OR gate to implement this.

## We could use a ROM with 6bit address field.



4)Mux at Rd for  Register file

         the Mux will select  "#31" output of another Mux.

         if select for the Mux is 0, it will select output of another Mux

             ,otherwise select "#31".

         We call the select signal Mux_Rd_CNT.

         Only Jal will set Mux_Rd_CNT.



           OP     FUN     ALUoperation  :      OP     FUN         Mux_Rd_CNT

  JAL    3           X                  X              000011   XXXXXX            1

      ## We could implement the logic with AND and OR gates.

      ## We could use a decoder  to implement this.



5)Mux at line 15-11 for Register file

         the Mux will select  lines 15 to 11 or lines 20 to 16.

         if select for the Mux is 0, it will select lines 15 to 11 ,

            otherwise select lines 20 to 16.

         We call the select signal Mux_Line11.

         Whenever RT field acts like RD field, we will set Mux_Line11.

        Whenever they try to write something,

              they need Rd field(some times Rt) .



             OP       FUN     ALUoperation  :      OP     FUN         Mux_Line11.

ANDI      6            X                  AND       000110   XXXXXX             1

ORI        d            X                   OR         001101   XXXXXX             1

SLTI       a            X                   SLT       001010   XXXXXX              1

ADDI      8            X                  ADD       001000   XXXXXX              1

LW        23           X                  ADD       100011   XXXXXX              1

LB        20           X                  ADD        100000   XXXXXX              1



    ## We could implement the logic with AND and OR gates.

    ## We could use a decoder with OR gate to implement this.

    ## We could use a ROM with 6bit address field.



6)Mux at D/IN for Register file

         the Mux will select  either output from Mux 3(control signal for this is

         Mux_dataMem) or lines from NPC +4(PC +8).

         if select for the Mux is 0, it will select output from Mux3,

          otherwise select  lines from NPC + 4.

         We call the select signal Mux_Line_NPC_plus4.

        Whenever we have to save NPC + 4, we will set Mux_Line_NPC_plus4.



        Only Jal and Jalr will set Mux_Line_NPC_plus4.



        OP   FUN  ALUoperation  : OP    FUN   ALU_OP: Mux_Line_NPC_plus4.

 jal     3       X                X        000011  XXXXXX       X                     1

 jalr   0        9                X        000000  001001         X                     1



    ## We could implement the logic with AND and OR gates.

    ## We could use two decoders with OR gate and AND gate

           to implement this.

    ## We could use a ROM with 12bit address field.



7) Mux and control for NPC

    We have to design control logic for  NPC_CNT

            (controller before the Mux).

    The controller will  do one of four things.

            1)check if  branch condition is met  and if the instruction is branch

                instruction, it will generate select signal

                for the Mux(Mux_NPC_CNT =00).

                the mux will select branch address(Target address at the figure).

            2) check if the instruction is jump instruction,

                 it will generate select signal

                for the Mux(Mux_NPC_CNT =01).

                the mux will select jump address.

            3)check if the instruction is jr or jalr instruction,

                it will generate select signal

                for the Mux(Mux_NPC_CNT =10).

                the mux will select jump address(Drs from the register file).

            4)otherwise, either branch condition failed or regular instruction.

                 it will generate select signal

                for the Mux(Mux_NPC_CNT =11).

                the mux will select NPC +4 address lines.



                The part of inputs for this controller come from

                  Control Signal which tell  the instruction is

                  branch instruction(NPC_CNT_SIG = 00) , or

                 the instruction is jump or jal  instruction(NPC_CNT_SIG = 01), or

                 the instruction is jr or jalr instruction(NPC_CNT_SIG = 10).

                 the instruction is regular instruction(NPC_CNT_SIG = 11).



                The other part of inputs for this controller come

                  from Mux 8 which tells  the branch condition met or

                          not(Mux8_output = 1 ; branch condition met).





The Control Signal should generate NPC_CNT_SIG.



                   OP       FUN     ALUoperation  :      OP              FUN        NPC_CNT_SIG[1:0]



     BEQ       4         X                  SUB                000100    XXXXXX             00

     BNE       5         X                  SUB                000101    XXXXXX             00

     J            2         X                     X                   000010     XXXXXX             01

     jal          3         X                     X                    000011     XXXXXX             01

     Jr          0          8                     X                    000000     001000               10

     jalr        0          9                     X                    000000     001001               10



    ## We could implement the logic with AND and OR gates.

   ## We could use two decoders with Inverters and AND gates  to

    # implement this.

    ## We could use a ROM with 12bit address field.



Now we need to generate signals  MuX_NPC_CNT.

            1)check if  branch condition is met  and if the instruction is branch

                instruction, it will generate select signal for the

                Mux(Mux_NPC_CNT =00).

                the mux will select branch address(Target address at the figure).

               if  NPC_CNT_SIG  =00 and Mux_output = 1 , then

                  Mux_NPC_CNT[1:0] =00.





            2) check if the instruction is jump instruction, it will generate select

                   signal  for the Mux(Mux_NPC_CNT =01).

                    the mux will select jump address.

                       if NPC_CNT_SIG =01 then Mux_NPC_CNT[1:0] = 01.



            3)check if the instruction is jr instruction, it will generate select

                    signal    for the Mux(Mux_NPC_CNT =10).

                the mux will select jump address(Drs from the register file).

                      if NPC_CNT_SIG =10 then Mux_NPC_CNT[1:0] = 10.



            4)otherwise, either  regular instruction,   or    branch instruction and

                 branch condition failed  .

                 it will generate select signal

                 for the Mux(Mux_NPC_CNT =11).

                 the mux will select NPC +4 address lines.



                     if NPC_CNT_SIG =11 or

                        NPC_CNT_SIG  =00 and Mux_output = 0 ,

                         then  Mux_NPC_CNT[1:0] =11.

################################################################



    ## We could implement the logic with AND and OR gates.

    ## We could use two decoders with OR gate and AND gate

     ## to implement this.

    ## We could use a ROM with 12bit address field.



     The logic is simple, so try to implement with gates.





                                       Mux_NPC_CNT[0]   = SIG[0]   +  MUX' *SIG[1]'



                       SIG               00    01   11    1 0

                                      0      1      1      1      0

                       MUX      1        0     1      1      0





                                       Mux_NPC_CNT[1] = SIG[1 ]   +  MUX' *SIG[0]'



                       SIG              00    01   11   1 0

                                      0     1       0    1     1

                       MUX      1     0       0    1      1







8)Mux for the control after the ALU



         the Mux will select  either zero  from ALU or zero'.

         if select for the Mux is 0, it will select zero, otherwise select

         zero'.

         We call the select signal Mux_Branch.

        Whenever  we have BEQ, Mux will select zero otherwise , select zero'.



               OP       FUN     ALUoperation  :      OP              FUN        Mux_Branch



    BEQ     4           X                  SUB                000100    XXXXXX             0

    BNE     5           X                  SUB                000101    XXXXXX             1

################################################################

## We could implement the logic with AND gate and Inverters.

## We could use a decoder to implement this.

          this is just output  x5 of OP code decoder.



9)R/W signal for Data memory.

      R/W = 0 means read.

      R/W = 1 means write.

                   OP       FUN     ALUoperation  :      OP              FUN               R/W

        LW      23           X                  ADD              100011   XXXXXX              0

        LB       20           X                  ADD              100000   XXXXXX              0

        SW      2b          X                  ADD               100000   XXXXXX              1

        SB       28          X                  ADD               101000   XXXXXX              1



## We could use a decoder to implement this.

          this is  ( x43 + x40) of OP code decoder.





# Multi Cycle control logic



###   Hard Wired and Micro programmed Controller ##





We have a high level  language program(c program ..)

We could compile it to Mips assembly language instruction(compiler).

We could translate assembly language to Mips machine language(assembler).



(c program => assembly language => machine language).



For a CPU with a hardwired controller:

 each machine language instruction is  decoded and executed like a finite state machine.



For  a CPU with a micro programmed  controller:



Each machine language instruction is  defined by a set of microinstructions and  each microinstruction is decoded and

Executed by micro sequencer  (Micro CPU)





## Multi Cycle Implementation####



##### Performance ###################################



 So far, we assume we could finish every instruction in a  single cycle, which means we  have to finish every instruction in a fixed time.

That means we have to set the clock frequency to the slowest instruction.

Usually memory access instruction or floating point instruction is

    the slowest one.



Although the CPI(cycle per instruction)  is 1, the overall performance of a single-cycle implementation is not likely to be very good, since several of the instruction classes could fit in a shorter clock cycle.



 One way to solve the problem of single cycle is :

        Break the instruction into smaller steps

        When we break the instruction make  sure all the steps

             to have similar length(this is important)

        Execute each step (instead of the entire instruction) in one cycle

        Cycle time: time it takes to execute the longest step



 The advantages of the multiple cycle processor:

        Cycle time is much shorter

        Different instructions take different number of number of steps

           to  complete



               We have examples of cylces below.

        Use ALU more than once per instruction



        Question:  What will be one instruction which uses ALU

                               more than once per instruction?

        Answer:



######Execution time  ####################

We have to think execution time equation.

       Execution time = Instructions/Program  * Clock cycles/Instruction

                                       * Seconds/Clock cycle

## Performance of single cycle machine.



            one program consists of  24% loads, 12%stores,

             44% ALU instructions,18% branches

            and 2% jumps( Instruction mix).



            Assume operation times for the major functional units are following:

            Memory units: 2 ns(nano seconds).

            ALU and adders: 2 ns.

            Register file( read and write): 1ns.







     Instruction

       class                      Fuctional units used by the instruction class

(IF : instruction fetch; MEM: Memory access;)

     ALU type           IF:    Register access :    ALU :     Register access

    Load                   IF:    Register access:     ALU:     MEM:  Register access

    Store                  IF:    Register access:     ALU:     MEM:

    Branch               IF:    Register access:     ALU:

    Jump                 IF:



   We will compute the required time  for each instruction class



 Instruction

       class      instruction    register     ALU        Data            Register

                       memory         read       operation   memory     write          total

    ALU type       2                    1                 2               0                     1        6ns

    Load               2                    1                 2               2                     1       8ns

    Store              2                    1                 2                2                     0      7ns

    Branch          2                    1                 2                0                     0       5ns

    Jump             2                    0                 0               0                      0       2ns





Question:    What will the clock cycle for a single clock cycle machine?



## Answer:



#################################################

A machine with a variable clock will have a clock cycle that varies

 between 2ns and 8ns.

What will the average time per instruction?

            CPU clock cycle = 8*24% + 7 *12%+ 6*44%+ 5*18%+2*2%

                                            = 6.6ns.

A little bit fast but  not much difference.





##Performance of a single -cycle cpu with floating point instructions#####



loads comprise  31% of the instructions.

stores comprise 21% of the instructions.

R format instructions comprise 27% of the mix

Branches comprise 5%

Jumps comprise 2%

FP add and subtract take the same time and together total 7% of

             the instructions

FP multiply and divide take the same time and together total 7% of

            the instructions



Assume we have a floating point unit that takes 8ns for addition

           and 16ns for multiply.



##

Question: How long will it take for the floating point add?

Answer:

##

Question: How long will it take for the floating point multiply?

Answer:





CPU clock cycle =8*31% + 7 *21%+ 6*27%+ 5*5%+2*2% +12*7%+20*7%

                                = 8ns.





Improved performance  =  20/8



## This is part of the reason we have to make multi-cycle implementation.

###############################################



Go back to page 85 datapath.



Question: Is there any way to reduce H/W?

Answer:





#########################

We have two memories : we will combine two memories

                          into a single memory unit for both instructions and data.

We have two ALUs: we will combine two ALUs into a single ALU.



##

Question : What kind of H/W do we need after making the modification.

Answer:





##############

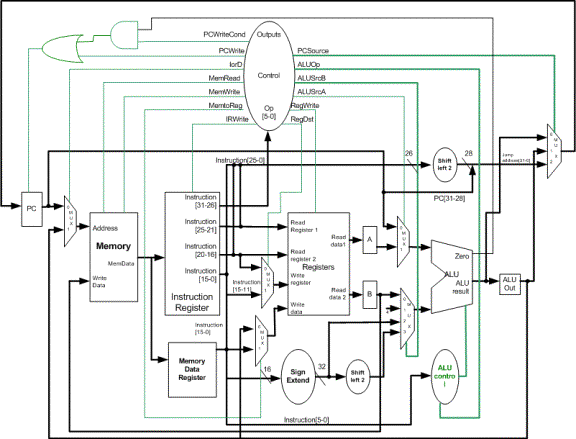

New data Path.  Figure 5.33 .page 383.

##############

1)Instruction fetch step

2)Instruction decode and register fetch step

3)Execution, memory address computation, or branch completion

    (change the PC with branch target address)

4)Memory access or R type instruction completion step

5)Memory read completion step





1)Instruction fetch step

       IR = Memory[PC];

       PC = PC +4;



       IR  : Instruction Register.



2)Instruction decode and register fetch step

      A = GPR[IR[25-21]];

      B = GPR[IR[20-16]];

      ALUOUT = PC +4 + (sign-extend(IR[15-0]) << 2);



3)Execution,memory address computation, or branch completion

    (change the PC with branch target address)

    Memory reference:

            ALUOut = A + sign extend(IR[15-0]);

    Arithmetic logical instruction(R type)

            ALUOut = A op B;

   Branch:

            if (A = B=) PC = ALUOut;

   Jump:

         PC = PC[31-28] || (IR[25-0] << 2);

4)Memory access or R type instruction completion step

   Memory reference:

            MDR = Memory [ALUOut];

       or

           Memory [ ALUOut] = B;

   Arithmetic logical instruction(R type)

          GPR[IR[15-11]] = ALUOut;





5)Memory read completion step

   Load

        GPR[IR[15-11]] = MDR;



  ############## Control for Each State ###############



Finite State Machine(FSM).

      FSM is used to specify the multi cycle control.

      FSM  consists of a set of states and directions on how to change

      states.



FSM  review.

        Finite state machines:

        a set of states and internal storage

        next state function (determined by current state and the input)

        output function (determined by current state and possibly input)

        We’ll use a Moore machine (output based only on current state)

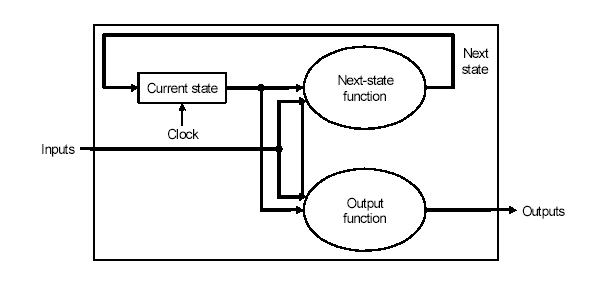

          Finite State Machine   Concept.

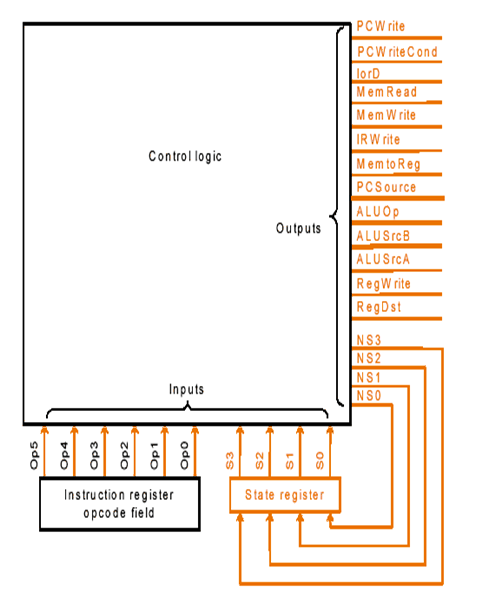

          Finite State Machine Controller

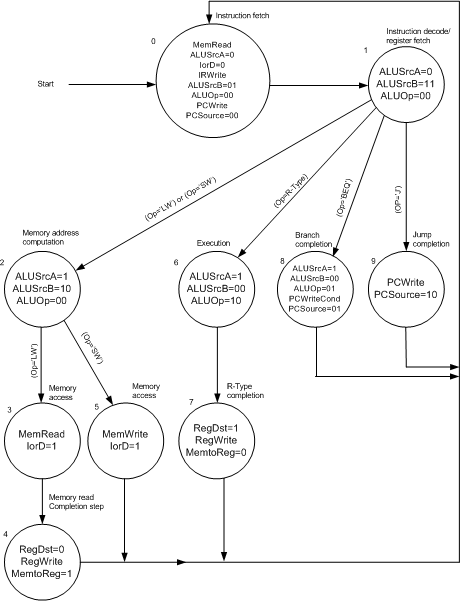

          Finite State Diagram  Fig. 5.42.





Logic Representative: Logic Equations

· Next state from current state

· State 0 -> State1

· State 1 -> S2,S6,S8,S9

· State 2 ->S3,S5

· State 3 ->S4

· State 4 ->State 0

· State 5 -> State 0

· State 6 -> S7

· State 7 -> State 0

· State 8 -> State 0

· State 9 -> State 0



Or How can we reach each state.

prior state & condition

S4, S5, S7, S8, S9             -> State0

S0                                         -> State 1

S1 &(op = sw || op = lw)  -> State 2

S2 &op = lw                        -> State 3

S3                                         -> State 4

State 2 & op =  sw             -> State 5

S1 & op = Rtype                -> State 6

State 6                                 -> State 7

S1 & op = beq                    -> State 8

State 1 & op = j                  -> State 9

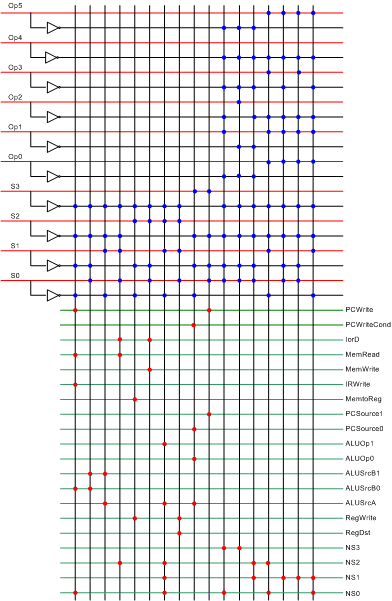

Implementation Technique: Programmed Logic Arrays

Fig. PLA...









Multi cycle Control

· Given numbers of FSM, can determine next state as function of inputs,

including current state

 Turn these into Boolean equations for each bit of the next state lines

 Can implement easily using PLA

 What if many more states, many more conditions?

 What if need to add a state?
